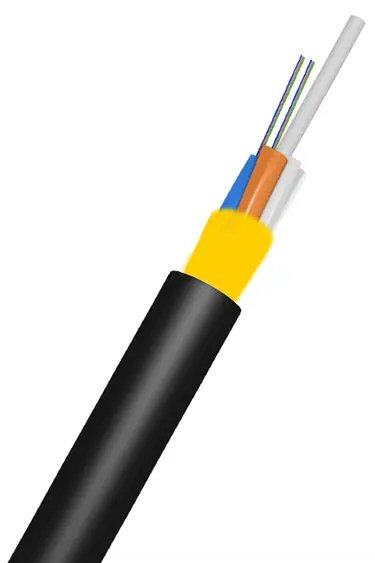

Double Layer Aerial All-Dielectric Self-Supporting 12/24/48/144/288 Core ADSS Cable For Long Span
$0.99
0 in stock
Application:
Self-Support Aerial installation,Outdoor;
Features & Benefits：
Light weight, Small cable diameter, Reducing the ice,Can be continuously electric erection,Using AT sheath, For large span.
Characteristics:
1，Two Jacket and stranded loose tube design . Stable performance and compatibility with all common fiber types.
2，Instead of Aramid yarn or glass yarn,there is no support or messenger wire required. Aramid yarn is used as the strength member to assure the tensile and strain Performance.,3，Mainly installed at existing 220kV or lower voltage power lines
Advantages:
1，Good aramid yarn have excellent tensile performance;
2，Fast delivery,200km ADSS cable regular production time about 10 days;
3，Can using glass yarn instead of aramid,to prevent mouse bite.
Standrads:
Comply with standard IEEE 1222-2004 as well as IEC 6079-1.
Related products
Sale!

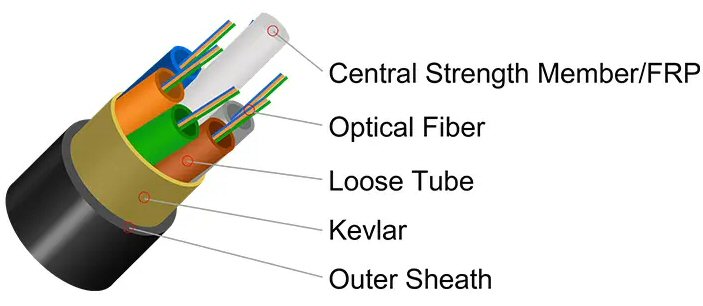

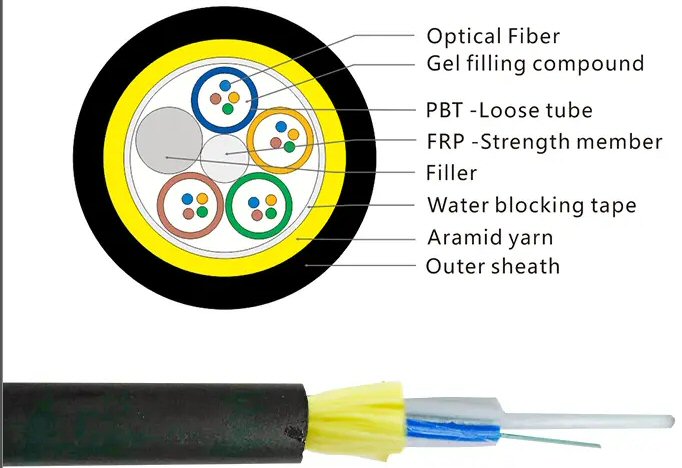

The ADSS optical cable adopts a loose-skinned twisted structure. 250µm optical fiber is sheathed in a loose tube made of a high modulus material, and the loose tube is filled with a waterproof compound. The loose tube (and filler rope) is twisted around a non-metallic central reinforcement core (FRP) to form a compact cable core, and the gaps in the cable core are filled with water blocking grease. The outer core of the cable is extruded with a polyethylene (PE) inner sheath, then stranded with aramid for reinforcement, and finally the extruded polyethylene (PE) outer sheath or tracking resistant (AT) outer sheath.
Product Name: (ADSS)All-dielectric Self-supporting Optical Cable
Application:
- ADSS fiber cables are erect on the same pole with power line in new and old power line.
- Long span
- Areas of strong electric field, multi-thunder, etc
Sale!
Aramid yarn is used as the strength member to assure the tensile and strain Performance. Mainly installed at existing 220 kV or lower voltage power lines . Two Jacket and stranded loose tube design. We production single layer and double layer ADSS cable for different span, fiber counts includes 2 core, 4 core, 6 core, 8 core, 12 core, 16 core, 24 core, 36 core, 48 core, 96 core, 144 core, 288 core, is available up to 288 fibers.
