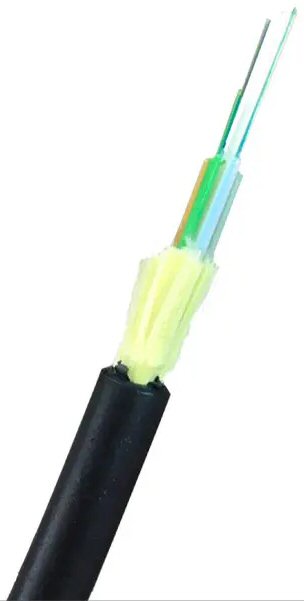

24 Core Aerial ADSS Cable Single Layer All-Dielectric Self-Supporting ADSS Optical Cable

Application:

Self-Support Aerial installation,Outdoor;

Characteristic:

1，Suitable for use on distribution and high voltage transmission lines with mini spans or self supporting installation for telecommunication ；

2，Track -Resistant outer jacket available for the high voltage；

3，Line where space potentials up to 35 KV；

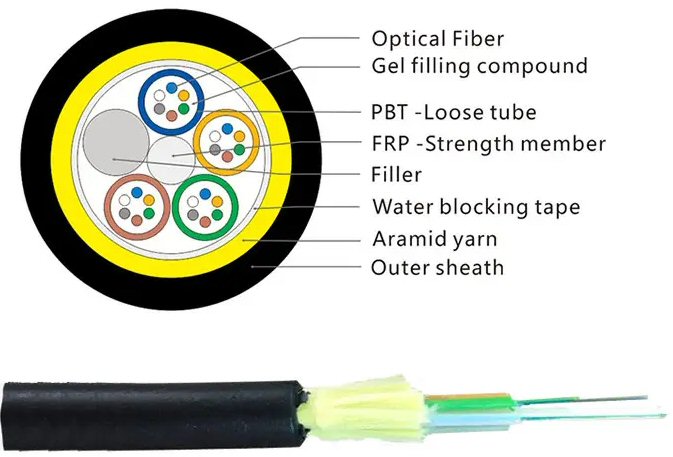

4，Gel-Filled buffer tubes are S-Z stranded；

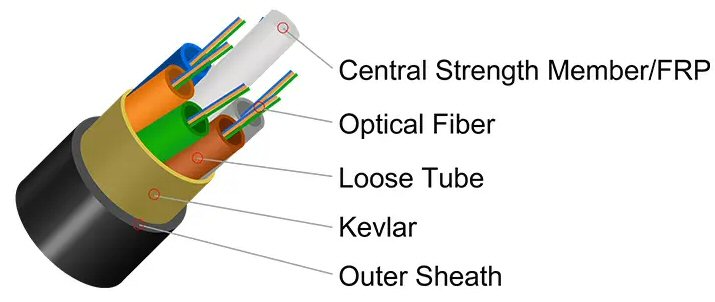

5，Instead of Aramid yarn or glass yarn,there is no support or messenger wire required. Aramid yarn is used as the strength member to assure the tensile and strain performance for mini span (usually below 150 meters)；

6，The fiber counts from 2-288 fibers.

 Features of GL ADSS Fiber Optic Cable:

1，It can be erected without powering off;

2，AT sheath, excellent electric tracking resistance;

3，Light weight, small cable diameter, reducing the influence of wind and ice, on the tower and support load, large span,the largest span 200 meters;

4，With excellent tensile properties and temperature characteristics, life expectancy is greater than 30 years.

Advantages of GL ADSS Optical Fiber Cable:

1，Good aramid yarn have excellent tensile performance;

2，Fast delivery,200 km ADSS cable regular production time about 10 days;

3，Can using glass yarn instead of aramid,to prevent mouse bite.
