The cable core is composed of loose tubes each with up to 2-24 fibers. The metal strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. High strength loose tube that is hydrolysis resistant. GYXTC8Y is an ideal selfsupporting outdoor cable,used for aerial installation.
Product Name: Small Figure 8 Fiber Optic Cable

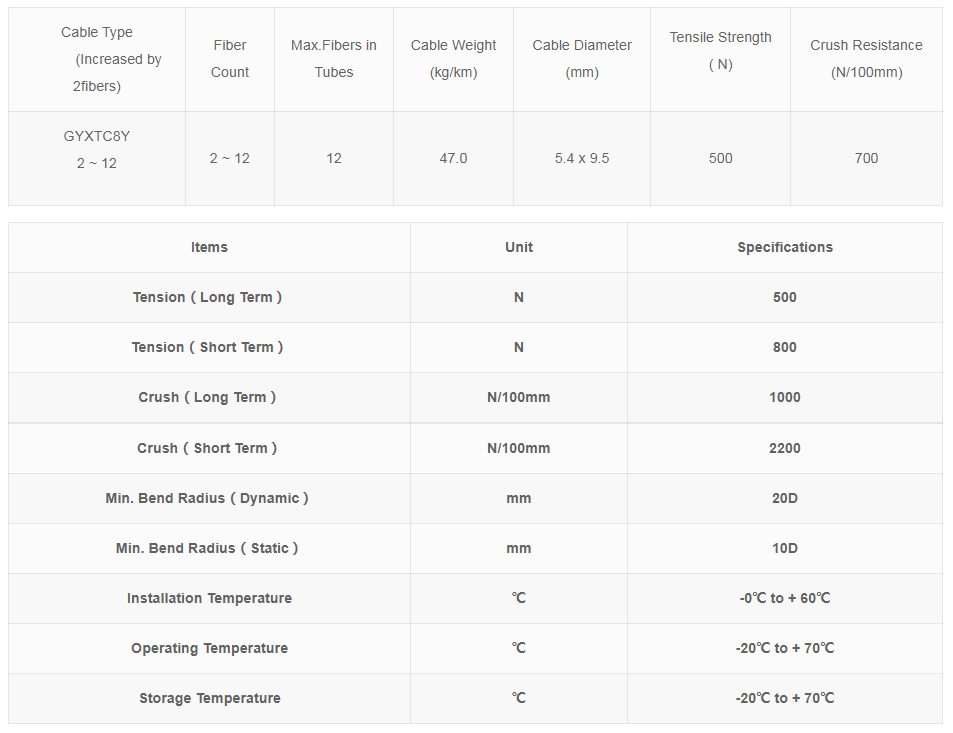

Cabel Type: GYXTC8Y
Application: Self supporting Aerial for FTTH Solution
Standards:
Comply with stand YD/T 1155-2001 as well as IEC60794-1.
Application: Self supporting Aerial for FTTH Solution 1，Used for indoor wiring, the end user with cable directly; 2，Used for building introduction of optical cable; 3，The user in the FTTH indoor wiring.
Temperature Range: Operating :-40℃ to +70℃ Storage :-40℃ to +70℃
Characteristic: 1.Accurate optical fiber excess length ensures good mechanical and temperature performance., 2.High strength loose tube that is hydrolysis resistant and special tube filling compound and flexibility. 3.Figure 8 self supporting type structure possesses high tensile strength and is convenient for aerial installation and its installation cost is cheap. 4.The service life of the products willbe more 30 years. 5.Light, flexible, easy for the laying and it is used for FTTH solution.
Standards: Comply with stand YD/T 1155-2001 as well as IEC60794-1.
In the GYTA53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An Aluminum Polyethylene Laminate(APL) is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a thin PE sheath. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.
Product Name:Stranded Loose Tube Cable with Aluminum Tape and Steel Tape(Double Sheaths GYTA53).
Brand Place of Origin: GL Hunan,China (Mainland)
Application: Adopted to Outdoor distribution. Suitable for aerial, and direct-burial method. Long distance and local area network communication.
Starting custom your ideal size
GYXTW cable, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.
Product Name: GYXTW Outdoor Duct Aerial Uni-tube Light-armored Cable;
Outer Sheath: PE,HDPE,MDPE,LSZH
Armored: Steel Tape+Parallel Steel Wire
Fiber Type: Singlemode,multimode,om2,om3
Fiber Count: 2-24 Core
Supply Ability: 10000KM per month
